Large production Wood chip Crusher, drum wood chipper, wood stump crusher wood shredder

Brand Name : SH

Model Number : SH3600-1600

Certification : ISO9001

Place of Origin : Shandong Province, China

MOQ : 1 SET

Price : US $18,000 - 32,000 / Set

Payment Terms : T/T or L/C at sight, Western Union

Supply Ability : 1000sets/year

Delivery Time : within 25 days

Packaging Details : flat rack container loading

Name : Wood Crusher

Application : Crushing wood roots stump into chippers

Condition : New

Materials : Shredder stump, roots, pallets, straws, etc into chippers

Power(W) : 400HP diesel engine

Feeding inlet diameter : 3600mm

Automatic Grade : Automatic

Outlet conveyor length : 12meters

Production capacity : 25-30tons/hour

Mobile usage : with wheels

Weight : 18tons

Contact Now

STUMP CRUSHER
1.Indtroduction:

Processing Raw Materials : wood roots/stumps,branches, straw, pallets, etc .
Feeding inlet diameter :3600mm
shaft diameter : 800mm
Capacity: 25-30tons/hour
blade quantity: 4pcs
electric motor :185kw/3phase

2.Specification:

Technical data	Model SH3600-1600
Blade shaft size	1600x850mm
Rotor diameter	800mm
Blade quantity	4
Main motor power	185KW
Feeding inlet diameter	3600mm
Out feed conveyor	12meters
Capacity	25-30Ton/Hour
Weight	18000kg

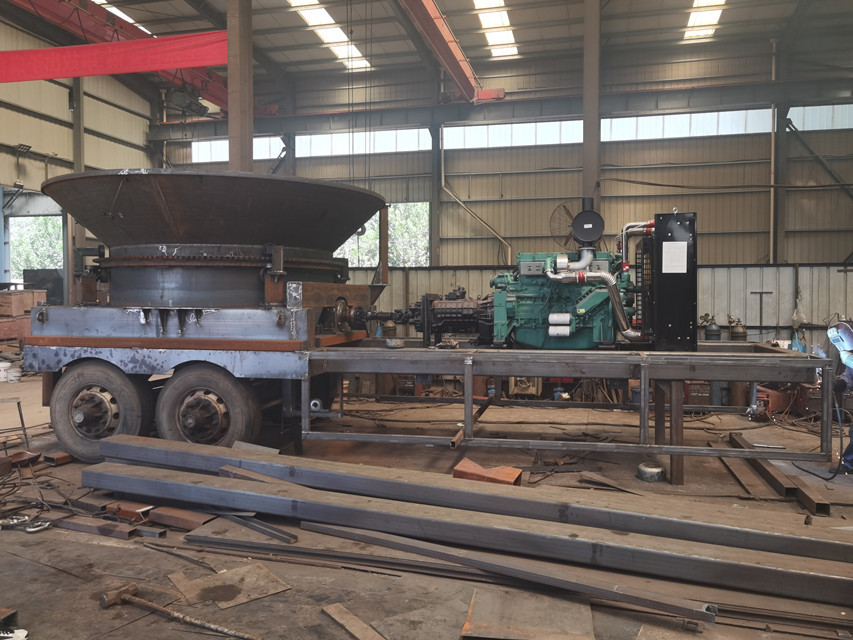

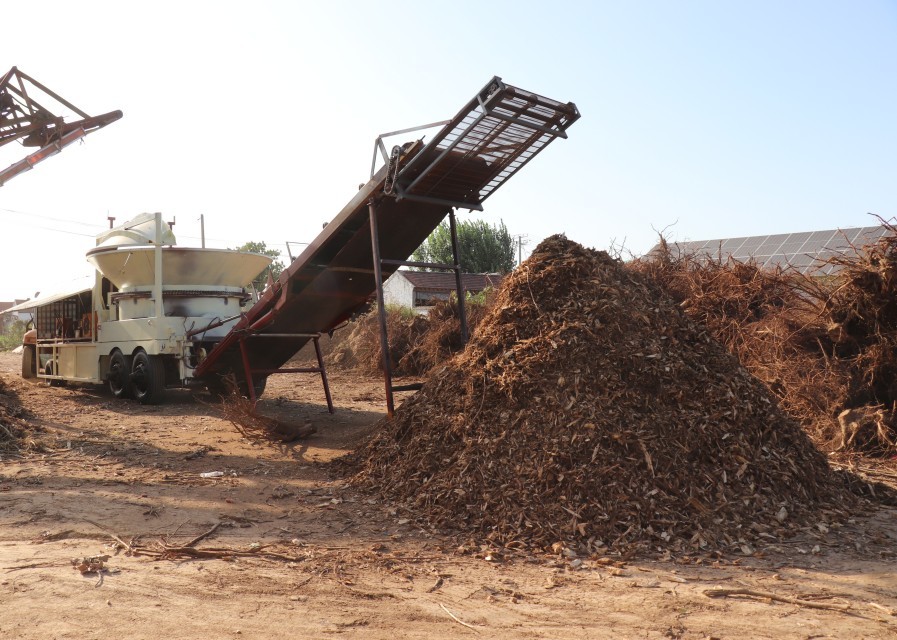

3.Photos:
Large production Wood chip Crusher, drum wood chipper, wood stump crusher wood shredder
Diesel power type, with wheels for mobile usage

Optional - Collapsible conveyor

Wood Composite Crusher Machine

Tehnical data:

Model		SH2000-1000	SH1300-600	SH1400-600	SH1600-600
Feeding inlet size		2000x1000mm	1250x600mm	1400x600mm	1600x600mm
Blade roller diameter		1400mm	850mm	850mm	850mm
Blade roller speed		750RPM	850RPM	850RPM	850RPM
Production capacity		70-100ton/H	12-15ton/H	18-20ton/H	25-30ton/H
1	YG8 hammer blade qty	86pcs	20pcs	24pcs	28pcs
2	Blade qty	3groups/9tablets	2groups/4tablets	2groups/4tablets	2groups/4tablets
Max. Processing log diameter		<800mm	450mm	450mm	450mm
Main motor power		450kw	160kw	200kw	250kw
Wood chipper size		3-5cm	2-4cm	2-4cm	2-4cm
Working life of blades		4000T-5000T	4000T-6000T	4000T-6000T	4000T-6000T
Optional : Diesel engine power 400HP is workable Wheels for mobile usage Hydraulic collapsible outlet conveyor Magnetic machine for sucking out iron products

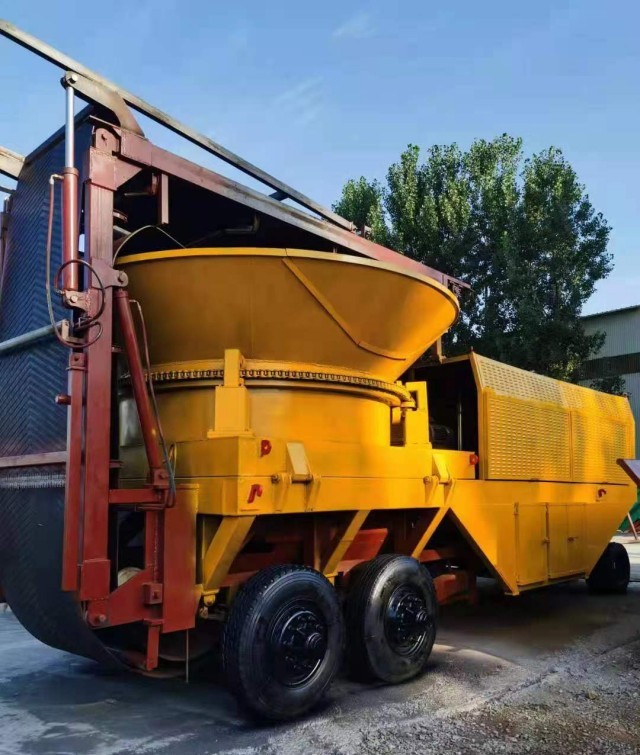

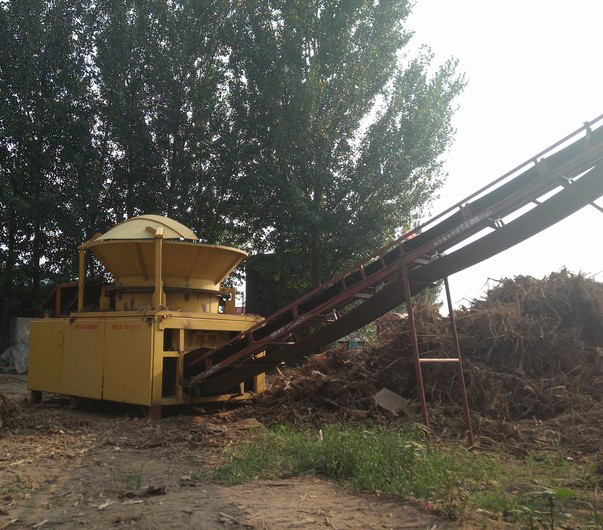

Photos:
Large production Wood chip Crusher, drum wood chipper, wood stump crusher wood shredder
Drum Chipper
Technical Data

Model	SH216	SH218
Feeding Inlet	240*540mm	310*680mm
Rotor Diameter	650mm	800mm
Blade Quantity	2 or 3	2 or 3
Motor Power	55KW	110KW
In Feed Conveyor	6000mm	6000mm
Out Feed Conveyor	10000mm	10000mm
Capacity	7-10T/H	9-13T/H
Weight	4070KG	7500KG

Large production Wood chip Crusher, drum wood chipper, wood stump crusher wood shredder
